• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes Silver with center caps. (Not included when (NHT) Max Trailering Package is ordered.)
• Tires, P265/70R17 all-terrain, blackwall (Not included when (NHT) Max Trailering Package is ordered.)
• Tire, spare P265/70R17 all-season, blackwall
• Wheel, 17" x 8" (43.2 cm x 20.3 cm) full-size, steel spare
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Active aero shutters, front
• Fascia, front body-color (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes recovery hook openings, but does not include hooks.)
• Fascia, rear body-color
• Assist steps, Black (Premier includes chrome accent strip) (Deleted when (RVQ) Assist step kit, Black, LPO or (VXH) Assist step kit, Chrome, LPO are ordered.)
• Mirrors, outside heated power-adjustable, manual-folding and color keyed driver mirror includes spotter mirror
• Glass, deep-tinted (With (9C1) Police Vehicle or (5W4) Special Service Vehicle includes all windows, except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wipers, front intermittent, Rainsense
• Wiper, rear intermittent with washer
• Liftgate, rear manual

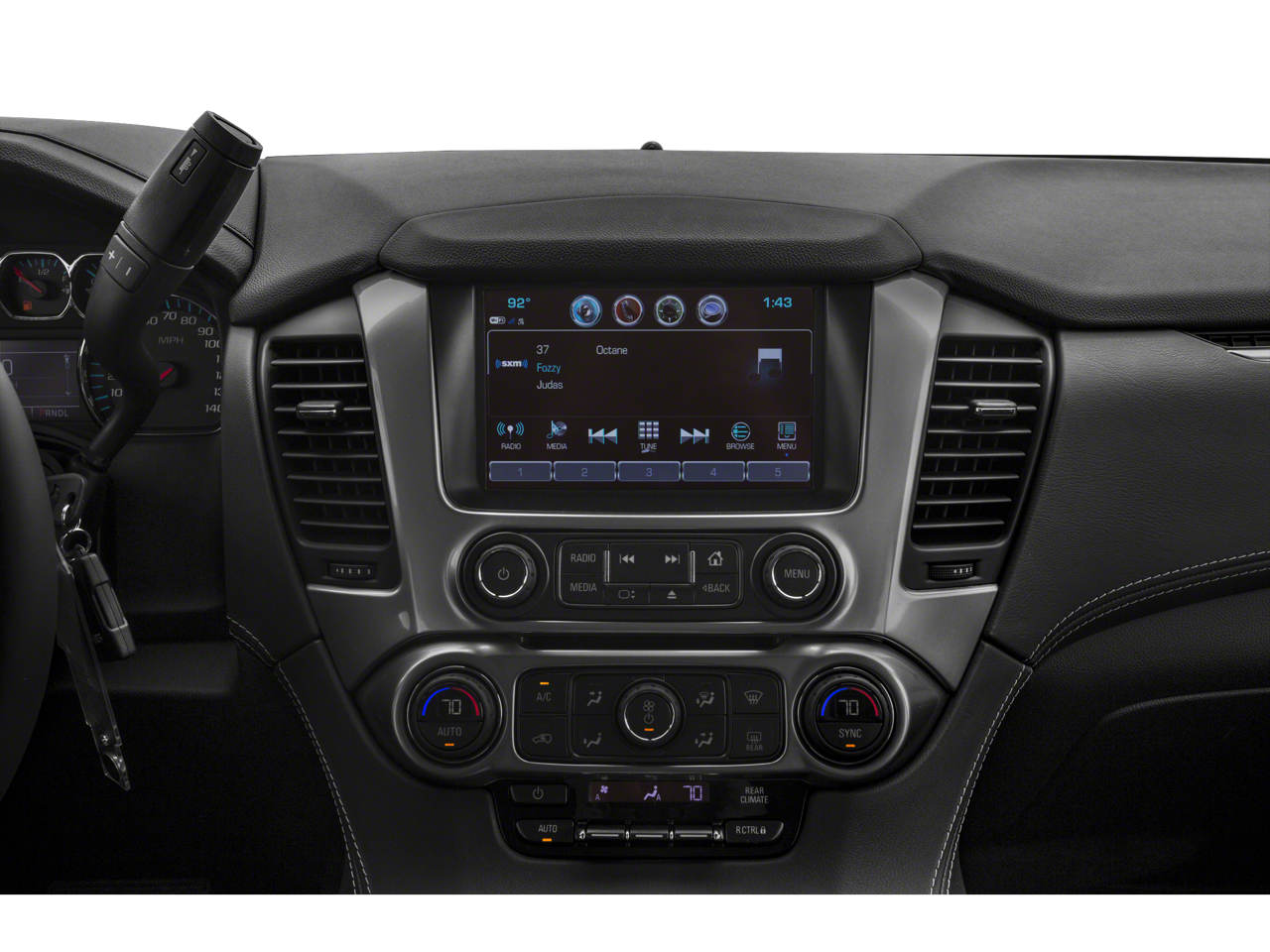

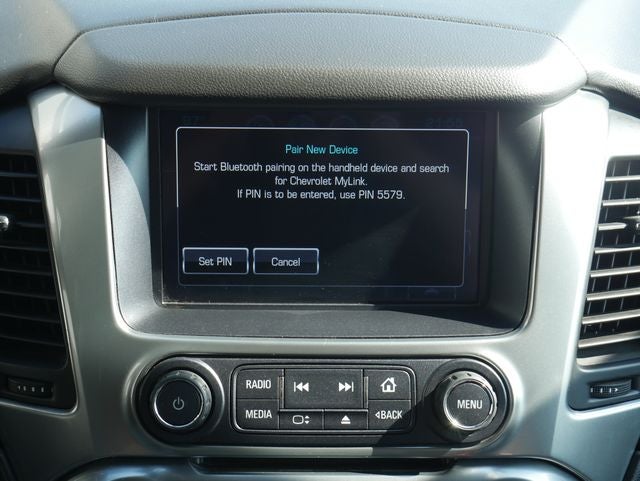

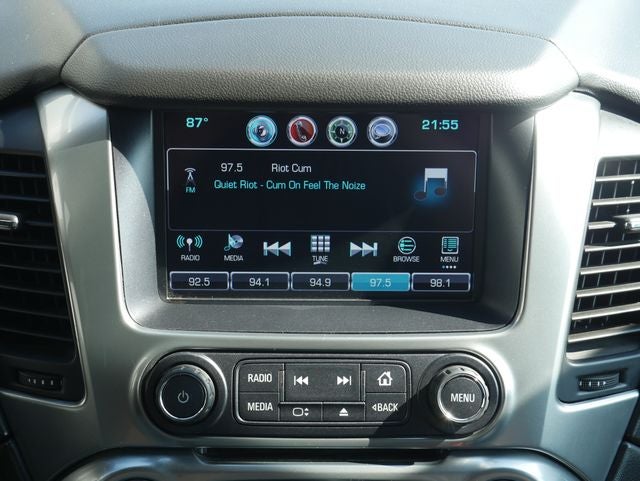

• Audio system, 8" diagonal color touch-screen with Chevrolet Infotainment AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. You can customize your content with audio, weather and more; featuring Apple CarPlay and Android Auto capability for compatible phone; 5 USB ports and 1 auxiliary jack
• Audio system feature, single-slot CD/MP3 player
• Audio system feature, 6-speaker system
• SiriusXM Radio delete
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• 4G LTE Wi-Fi Hotspot capable (Requires (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)

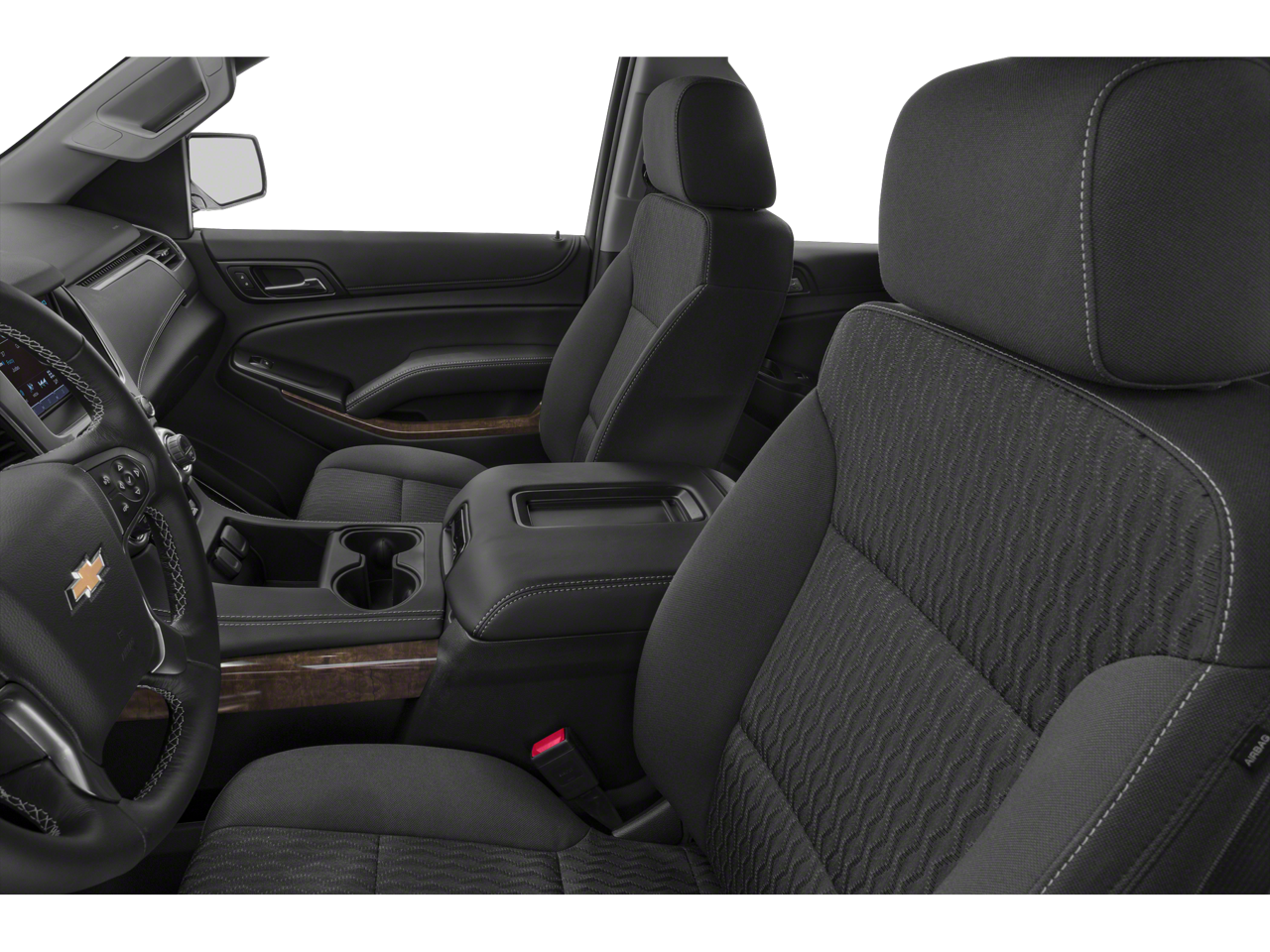

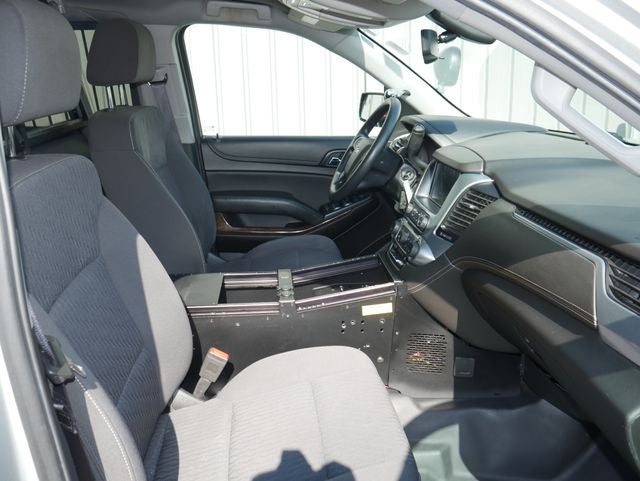

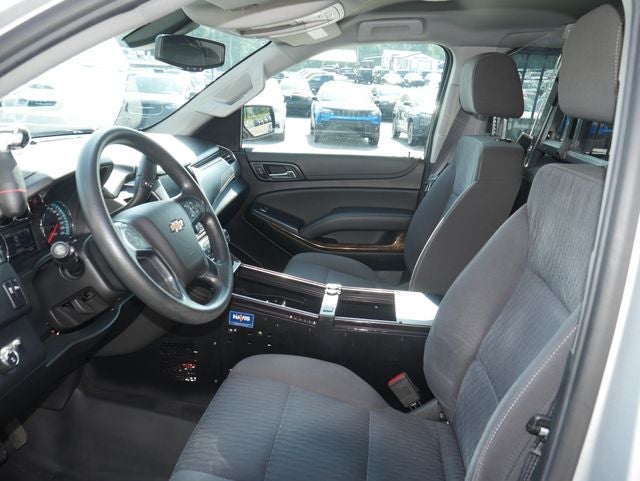

• Seats, front 40/20/40 split-bench with Vinyl (1FL) or Premium Cloth (1FL and 1LS), 3-passenger, includes 6-way power driver and 2 way front passenger seat adjuster, driver and front passenger power lumbar control and power reclining, center fold-down armrest with storage (includes auxiliary power outlet, USB port and input jack for audio system), storage compartments in seat cushion, adjustable outboard head restraints and storage pockets (With (9C1) Police Vehicle or (5W4) Special Service Vehicle includes lockable storage compartment.)
• Seat trim, cloth
• Seat adjuster, front passenger 6-way power

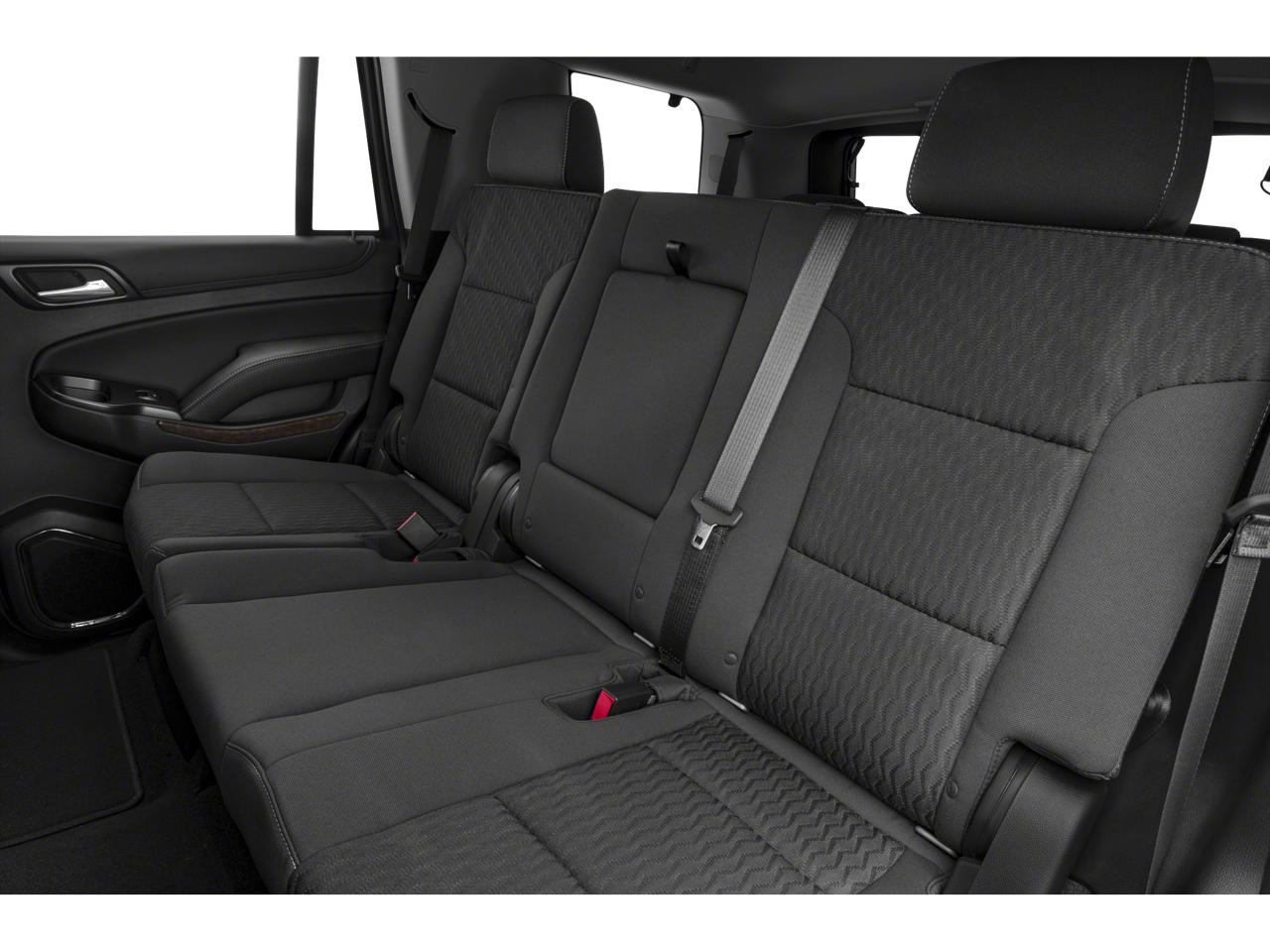

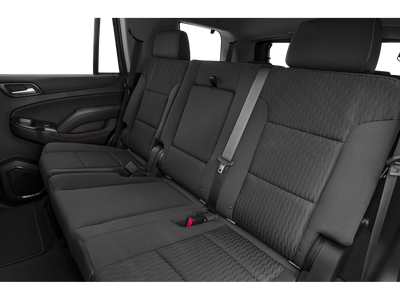

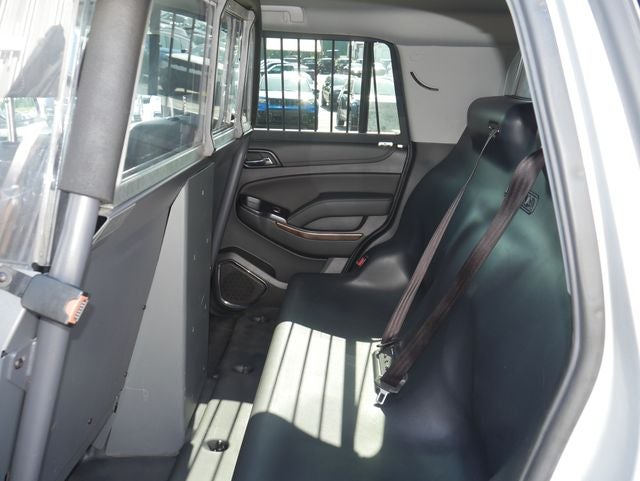

• Seats, second row 60/40 split-folding bench, manual
• Seat, third row manual 60/40 split-folding bench, fold flat
• Floor covering, Black rubberized vinyl

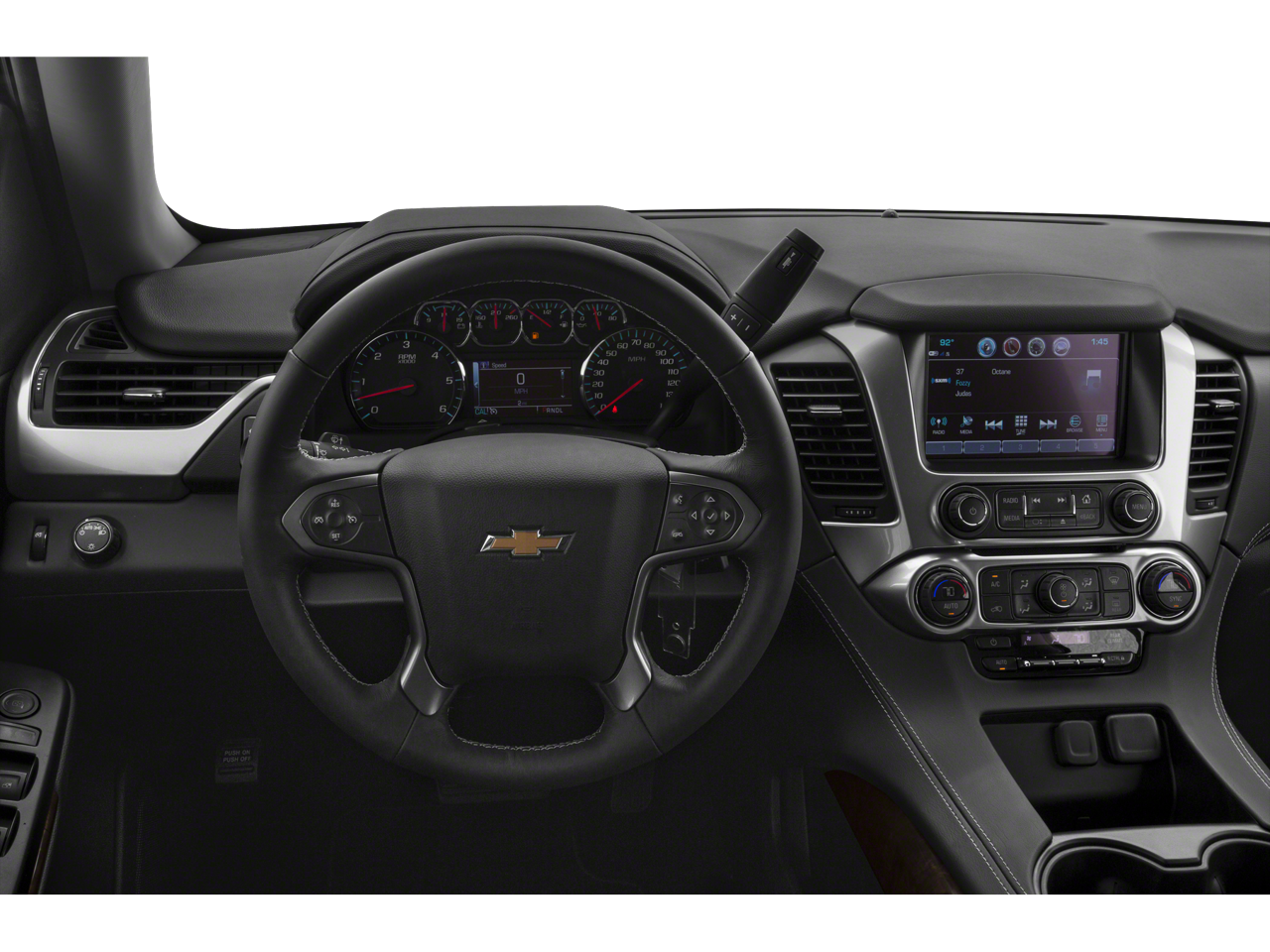

• Steering column, Tilt-Wheel
• Steering wheel, urethane

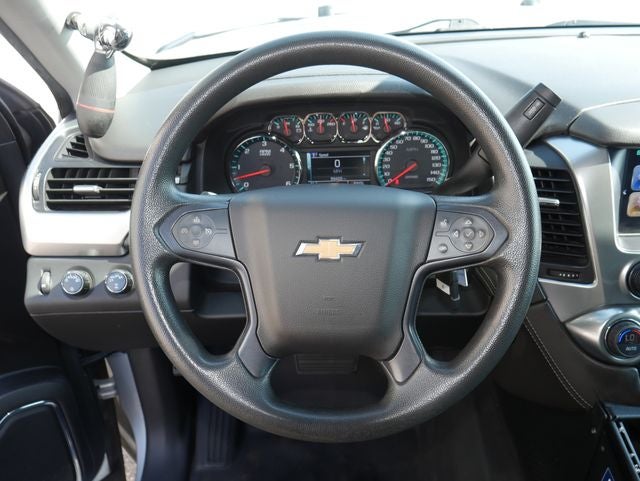

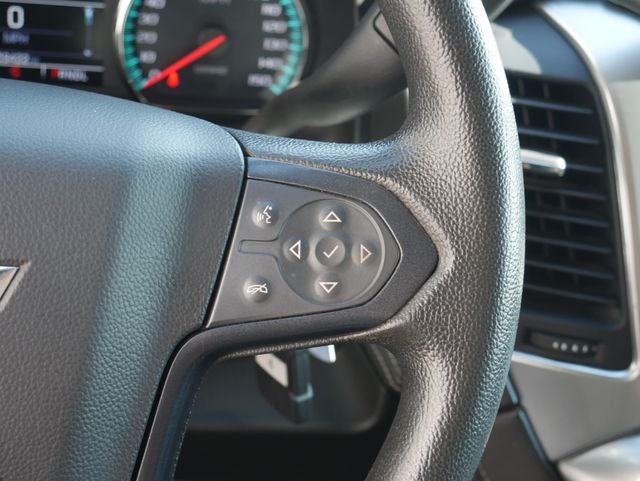

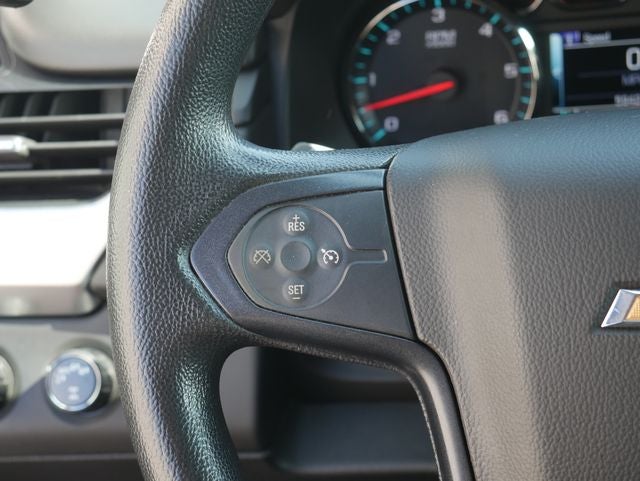

• Steering wheel controls, mounted audio and cruise controls includes Driver Information Center controls

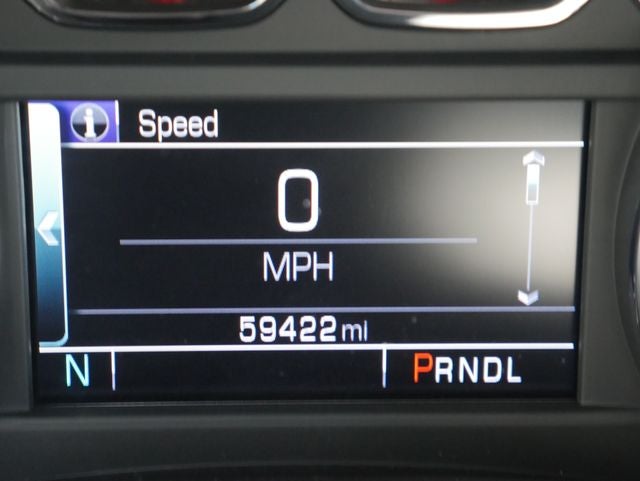

• Driver Information Center, 4.2" diagonal multi-color
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger seat belt unfasten and turn signal on
• Door locks, power programmable with lockout protection and delayed locking (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, Auto Lockout is disabled on Driver door.)
• Remote Keyless Entry, extended-range

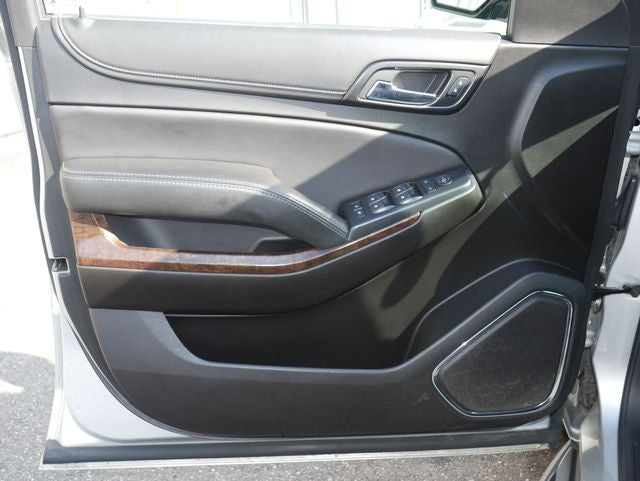

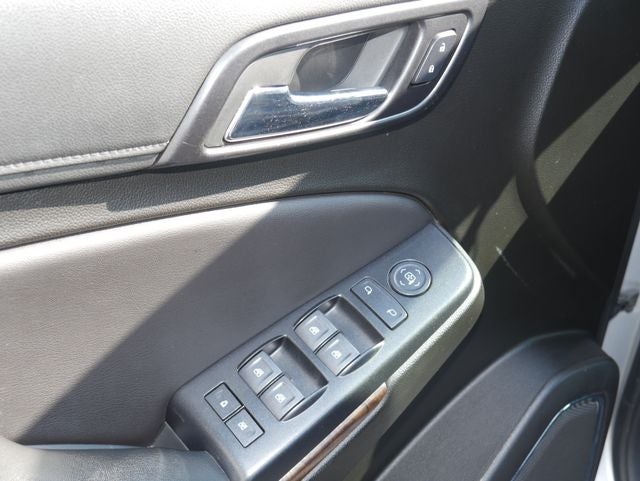

• Windows, power with Express-Down and Express-Up on front doors and lock out features
• Cruise control, electronic with set and resume speed

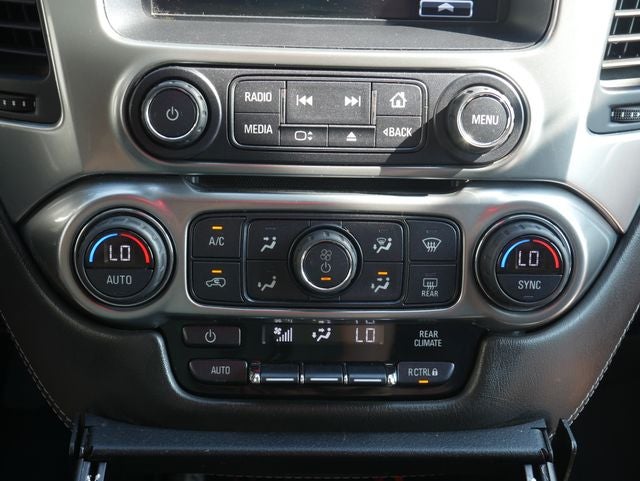

• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes dual-zone automatic, front and rear air conditioning electronic controls)
• Defogger, rear-window electric
• Power outlet, 110-volt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of console, 1 in 3rd row and 1 in cargo area (With (AZ3) 40/20/40 split-bench front seats, the outlet on the back of the console is deleted.)
• Mirror, inside rearview manual day/night
• Assist handles, 1st row passenger and 2nd row outboard seats (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, 1st row passenger assist handle is removed when (7X7) Spot lamps are ordered.)
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions. With (9C1) Police Vehicle or (5W4) Special Service Vehicle, interior lighting includes dome light, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions with control switch in the roof console

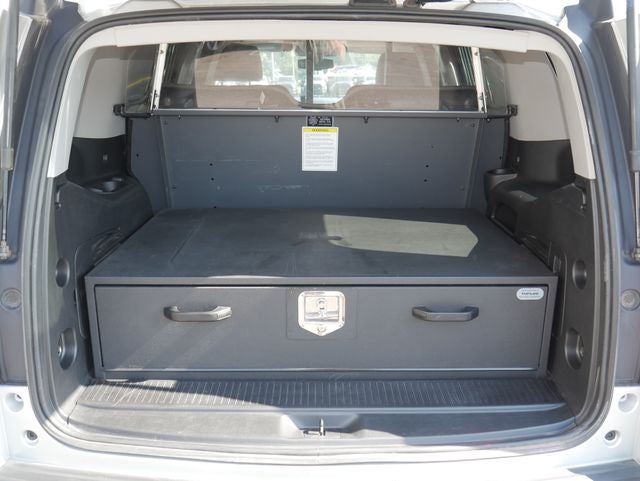

• Cargo management system
• Cargo net (Deleted when (ATD) 3rd row seat delete is ordered.)
• Chevrolet Connected Access capable (Subject to terms. See onstar.com or dealer for details.)

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power with Brake Assist
• StabiliTrak, stability control system with brake assist, includes traction control
• Daytime Running Lamps, with automatic exterior lamp control
• Teen Driver a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to help encourage safe driving behavior. It can limit certain available vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver
• Airbags, Frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for all rows in outboard seating positions (Included and only available with (AZ3) 40/20/40 split-bench front seat. With (9C1) Police Vehicle or (5W4) Special Service Vehicle requires (AZ3) 40/20/40 split-bench front seat and (9U3) SEO front center seat (20% seat) delete. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Door locks, rear child security
• OnStar and Chevrolet connected services capable (Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Park Assist with audible warning

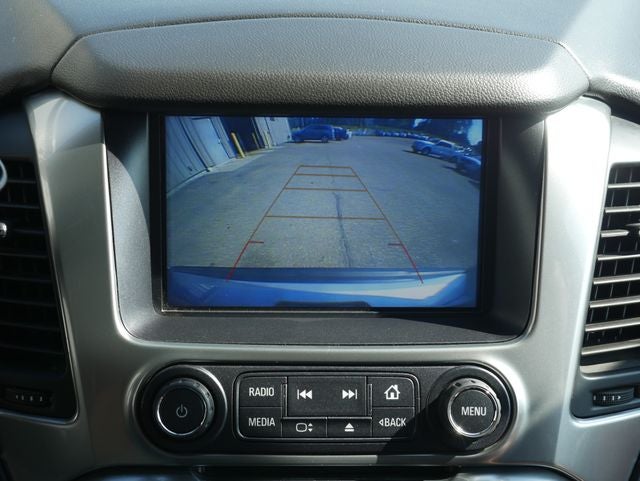

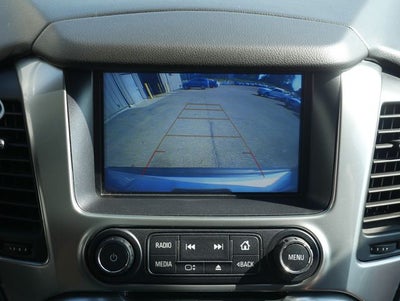

• Rear Vision Camera
• LATCH system (Lower Anchors and Tethers for CHildren), for child restraint seats lower anchors and top tethers located in all second-row seating positions, top tethers located in third row seating positions
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center, includes Tire Fill Alert. With (9C1) Police Vehicle (5W4) Special Service Vehicle does not apply to spare tire.
• Theft-deterrent system, electrical, unauthorized entry

COMMERCIAL PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

TIRES, P265/70R17 ALL-TERRAIN, BLACKWALL

• (STD)

WHEELS, 17" X 8" (43.2 CM X 20.3 CM) PAINTED STEEL

• With (9C1) Police Vehicle or (5W4) Special Service Vehicle
• includes Silver with center caps. (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH

• with Vinyl (1FL) or Premium Cloth (1FL and 1LS)
• 3-passenger
• includes 6-way power driver and 2 way front passenger seat adjuster
• driver and front passenger power lumbar control and power reclining

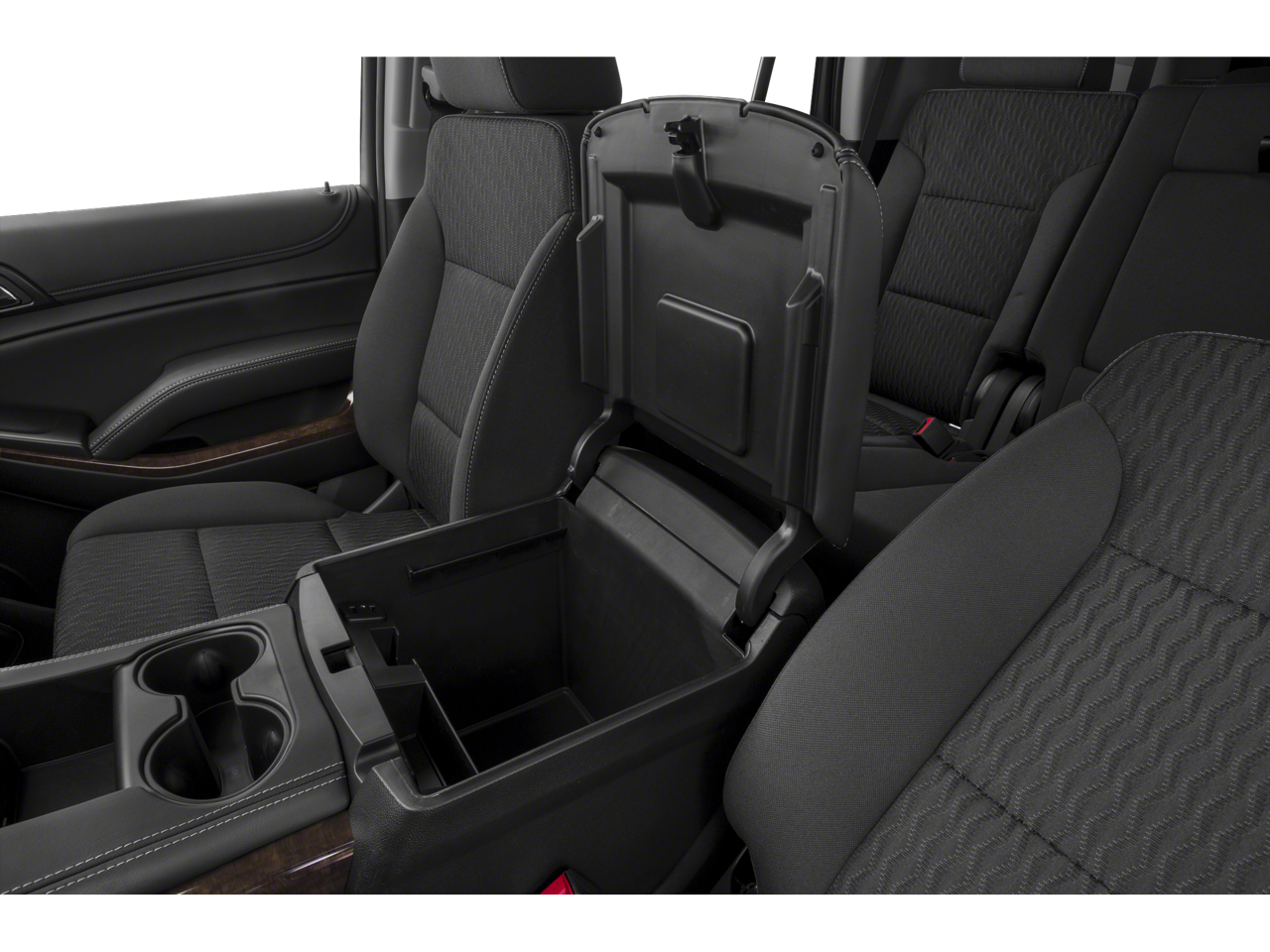

• center fold-down armrest with storage (includes auxiliary power outlet
• USB port and input jack for audio system)
• storage compartments in seat cushion
• adjustable outboard head restraints and storage pockets (With (9C1) Police Vehicle or (5W4) Special Service Vehicle includes lockable storage compartment.) (STD)

SUSPENSION PACKAGE, PREMIUM SMOOTH RIDE

• (STD)

AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; and Shop with the ability to browse
• select and install apps to your vehicle. You can customize your content with audio
• weather and more; featuring Apple CarPlay and Android Auto capability for compatible phone; 5 USB ports and 1 auxiliary jack (STD)

SEATS, 2ND AND 3RD ROW VINYL WITH FRONT CLOTH SEATS

• Provides vinyl second and third row seats and cloth front seats

SEATS, DRIVER AND PASSENGER FRONT INDIVIDUAL SEATS IN CLOTH TRIM

• Power driver and passenger bucket seats in base cloth trim. Derived from RPO (AZ3) 40-20-40 split bench seat with the 20% section removed which also removes the auxiliary power outlet
• USB port and input jack for audio system. Does not include a floor console. All exposed floor area will remain untrimmed.

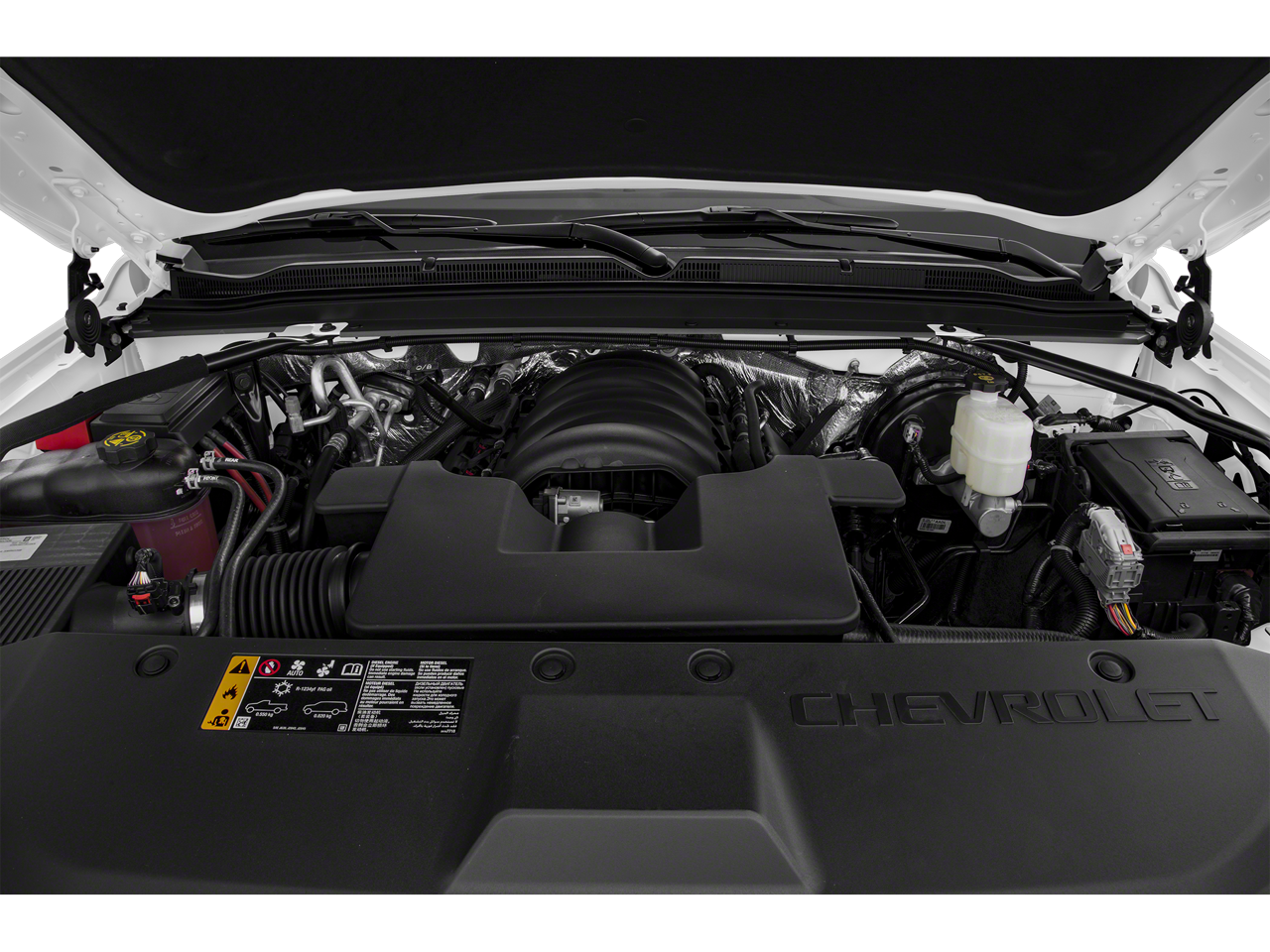

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 N-m] @ 4100 rpm) (STD)

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

TRANSFER CASE, ACTIVE, 2-SPEED ELECTRONIC AUTOTRAC

• with rotary controls
• includes neutral position for dinghy towing

LIGHTING, RED AND WHITE FRONT AUXILIARY DOME

• Red and white auxiliary dome lamp is located on headliner between front row seats (red is LED
• white is incandescent). The auxiliary lamp is wired independently from standard dome lamp

SWITCHES, REAR WINDOW INOPERATIVE

• (rear windows can only operate from driver's position)

DOOR LOCKS AND HANDLES, INSIDE REAR DOORS INOPERATIVE

• (doors can only be opened from outside)

IDENTIFIER FOR PPV

• includes
• (K47) high-capacity air cleaner
• (KW7) 170 amp high output alternator
• (K4B) 730 cold-cranking amps auxiliary battery
• electrical power & vehicle signals for customer connection located at the center front floor. Auxiliary battery circuit for customer connection located in the rear cargo area
• (Z56) heavy-duty
• police-rated suspension
• front independent torsion bar
• and stabilizer bar and rear
• multilink with coil springs
• (QAR) P265/60R17 all-season
• v-rated tires
• (ZAK) P265/60R17 all-season
• V-rated spare tire
• Police brakes
• (NZZ) underbody shield

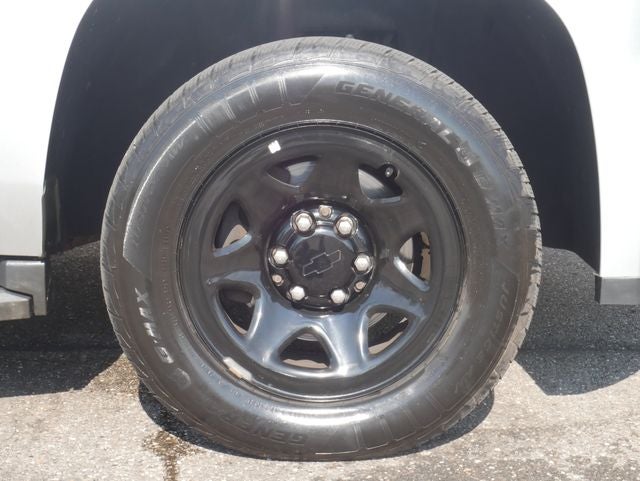

• (RAP) Black steel wheels w/bolt on center caps
• Certified speedometer
• delete roof rails
• (ATD) third row seat delete
• (NQH) active 2-speed transfer case (4WD only).

HEADLAMPS, DAYTIME RUNNING LAMPS AND AUTOMATIC HEADLAMP CONTROL DELETE

• deletes standard Daytime Running Lamps and automatic headlamp control features

WHEEL, 17" X 8" (43.2 CM X 20.3 CM) FULL-SIZE, STEEL SPARE

• includes P265/60R17 V-rated tire

SUSPENSION PACKAGE, HEAVY-DUTY, POLICE-RATED

• front
• independent torsion bar
• and stabilizer bar and rear
• multi-link with coil springs

• Heavy-Duty Police-Rated Suspension Package
• License Plate Front Mounting Package
• Preferred Equipment Group 1FL
• Skid Plate Package
• 6 Speakers
• 6-Speaker Audio System Feature
• AM/FM radio
• CD player
• Premium audio system: Chevrolet MyLink
• Radio: Chevrolet Infotainment AM/FM Stereo
• Single-Slot CD/MP3 Player
• SiriusXM Radio Delete
• Air Conditioning
• Automatic temperature control
• Front Dual Zone A/C
• Rear Air Conditioning
• Rear window defroster
• Driver 10-Way Power Seat Adjuster
• Front Passenger 6-Way Power Seat Adjuster
• Power driver seat
• Power steering
• Power windows
• Remote keyless entry
• Steering wheel mounted audio controls
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Driver & Front Passenger Airbags
• Dual front impact airbags
• Dual front side impact airbags
• Emergency communication system: OnStar and Chevrolet connected services capable
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Rear anti-roll bar
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Delay-off headlights
• Fully automatic headlights
• Extended-Range Remote Keyless Entry
• Security system
• Electronic Cruise Control w/Set & Resume Speed
• Speed control
• 170 Amp High Output Alternator
• 730 Cold-Cranking Amps Auxiliary Battery
• Black Assist Steps
• Bumpers: body-color
• Heated door mirrors
• Power door mirrors
• Spoiler
• Apple CarPlay/Android Auto
• Black Rubberized Vinyl Floor Covering
• Bluetooth® for Phone
• Chevrolet Connected Access Capable
• Cloth Seat Trim
• Driver door bin
• Driver vanity mirror
• Front reading lights
• Illuminated entry
• Overhead console
• Passenger vanity mirror
• Rear Park Assist w/Audible Warning
• Rear reading lights
• Rear seat center armrest
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• 2nd Row 60/40 Split-Folding Manual Bench
• 3-Passenger Front 40/20/40 Split-Bench Seat
• 3rd Row Passenger Seat Delete
• Power passenger seat
• Split folding rear seat
• Front Center Armrest w/Storage
• Passenger door bin
• Wheels: 17" x 8" Black Steel Police
• Rain sensing wipers
• Rear window wiper
• Variably intermittent wipers
• 3.08 Rear Axle Ratio

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3500
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2848
• Curb Weight - Rear (lbs): 2608

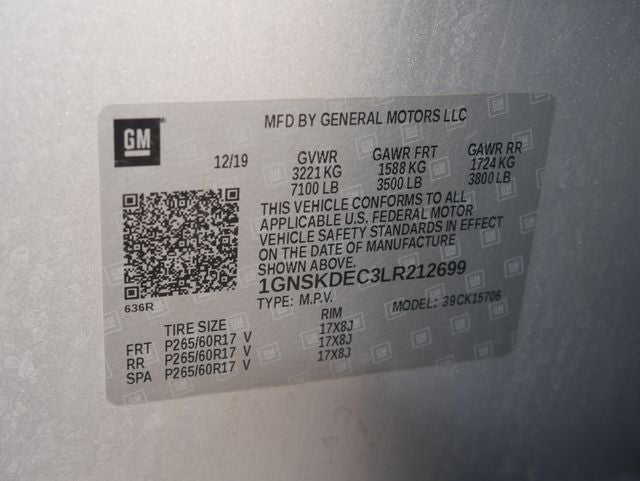

• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 13.6 x - TBD -
• Tires
• Front Tire Order Code: QAR
• Front Tire Order Code: RC3
• Rear Tire Order Code: QAR
• Rear Tire Order Code: RC3
• Spare Tire Order Code: ZAK
• Spare Tire Order Code: XCQ
• Front Tire Size: P265/60R17
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/60R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/60R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 8
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.00
• Length, Overall (in): 204.00
• Width, Max w/o mirrors (in): 80.50
• Height, Overall (in): 72.40
• Height, Overall (in): 74.40
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 35.91
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Front (in): 7.87
• Ground Clearance, Rear (in): 8.5
• Ground Clearance, Rear (in): 7.87
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -

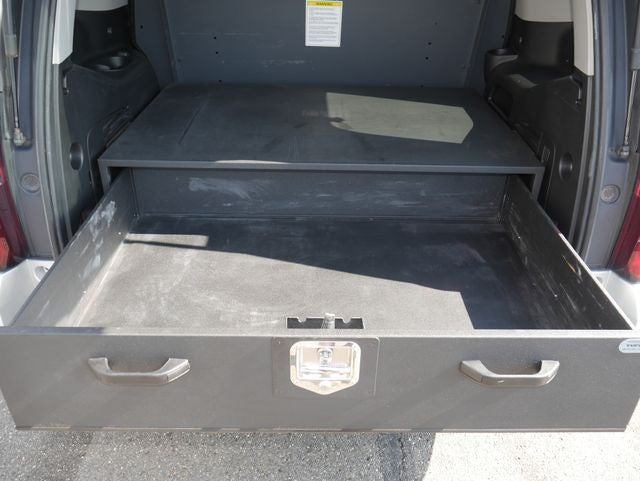

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 79.90
• Cargo Area Length @ Floor to Seat 2 (in): 43.20
• Cargo Area Length @ Floor to Seat 3 (in): 11.10
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.30
• Cargo Box (Area) Height (in): 40.90
• Cargo Box (Area) Height (in): 33.94
• Cargo Volume to Seat 1 (ft³): 111.8
• Cargo Volume to Seat 1 (ft³): 94.7
• Cargo Volume to Seat 2 (ft³): 51.7
• Cargo Volume to Seat 3 (ft³): 15.3
• Interior Dimensions
• Passenger Capacity: 6
• Passenger Capacity: 9
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.30
• Front Shoulder Room (in): 64.80
• Front Hip Room (in): 60.80
• Second Head Room (in): 38.70
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.10
• Second Hip Room (in): 60.20
• Second Hip Room (in): 60.30
• Third Head Room (in): 38.10
• Third Leg Room (in): 24.80
• Third Shoulder Room (in): 62.60
• Third Hip Room (in): 49.30
• Summary

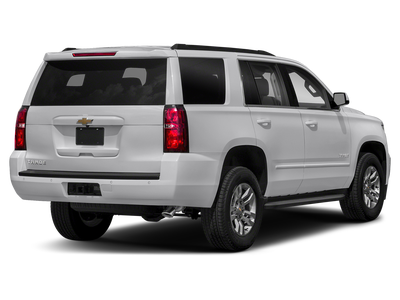

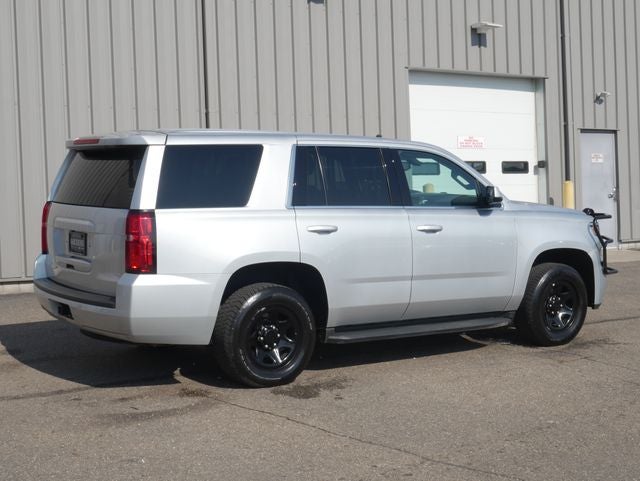

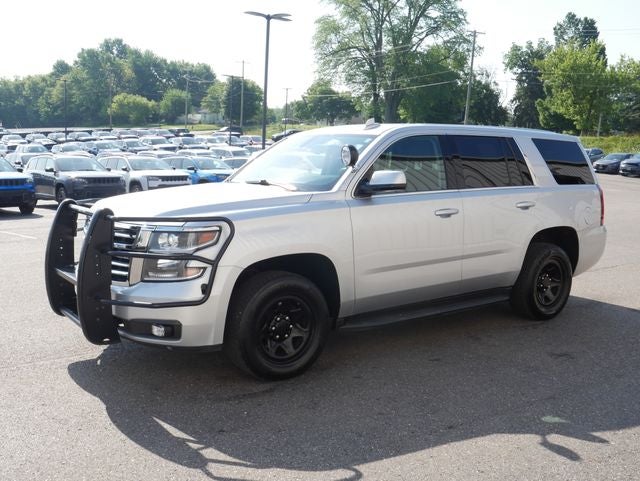

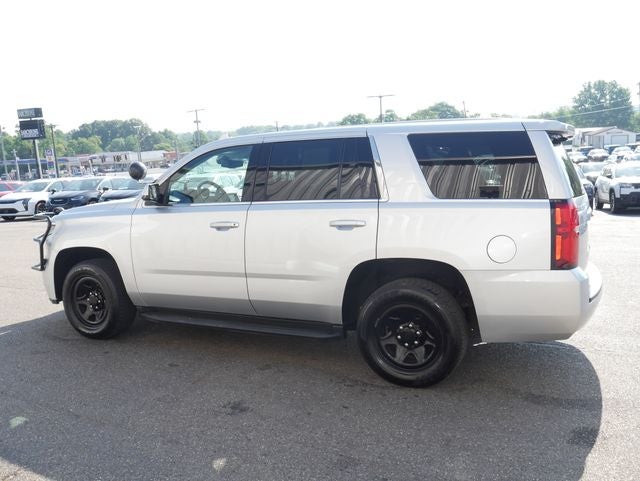

• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
